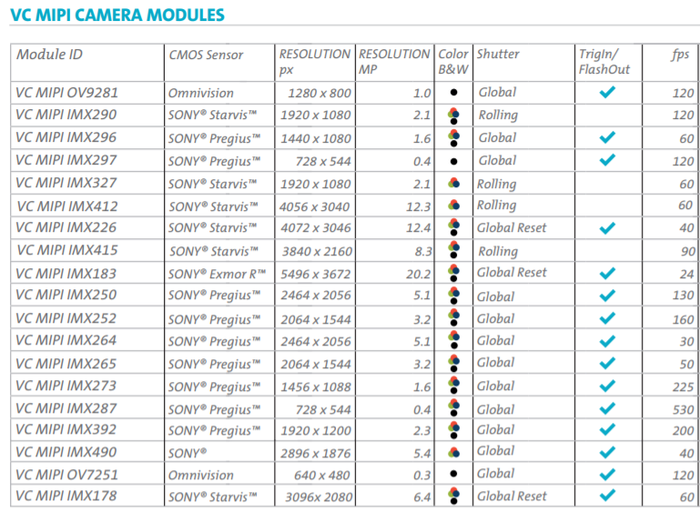

MIPI Camera Modules for Embedded Vision
Ultra-compact, MIPI CSI-2 compliant boards for high-tech OEM embedded vision, compatible with a huge range of sensors and CPU boards — ideal for multi-camera, mobile and distributed applications like autonomous driving, UAVs, Smart City and laboratory automation.
- Standardised data transmission, so modules can be manufactured and integrated at extremely low cost
- Ceramic LGA chip on a copper layer with edge metallization, for high mechanical stability and minimal noise
- 22-pin flexprint connector on a high-end eight-layer board, used to trigger the sensor
- 200mm shielded flexprint cable included, with differential line pairs for noise-free transmission
We also provide the drivers for an optimal sensor connection. Driver development is a continuing task, but all the standard drivers are included for free.
The MIPI Repeater Board allows for a cable extension and additional interfaces like trigger input and flash trigger output at the same time.
Maximizing the output of the powerful MIPI-CSI-2 interface, Vision Components developed shielded FPC cables (for 15-22 and 22-22) to transfer data reliably and losslessly, meaning the MIPI camera module can be connected directly to the CPU board without any additional board. A lensholder for C and S mount lenses is also available.
